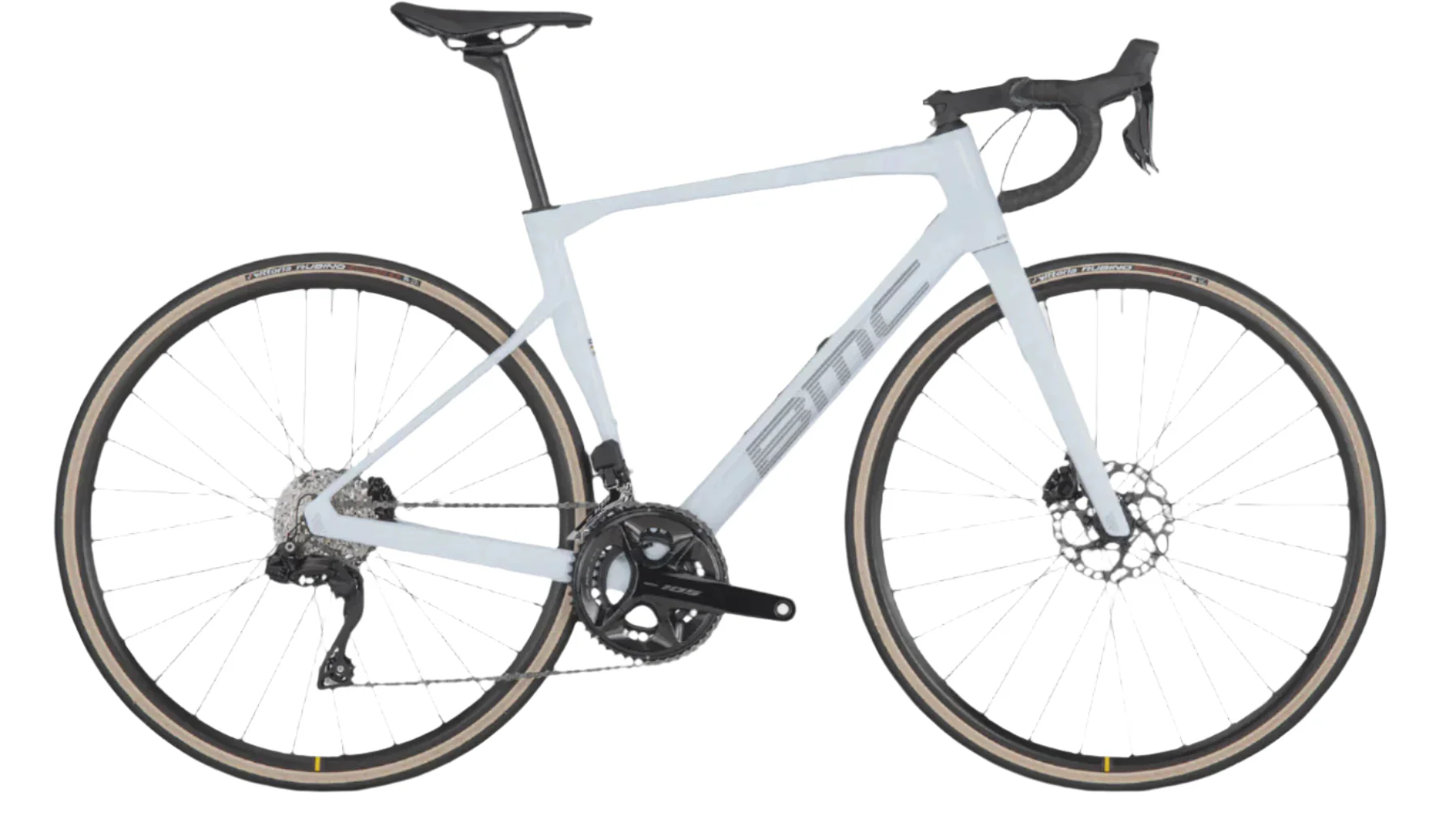

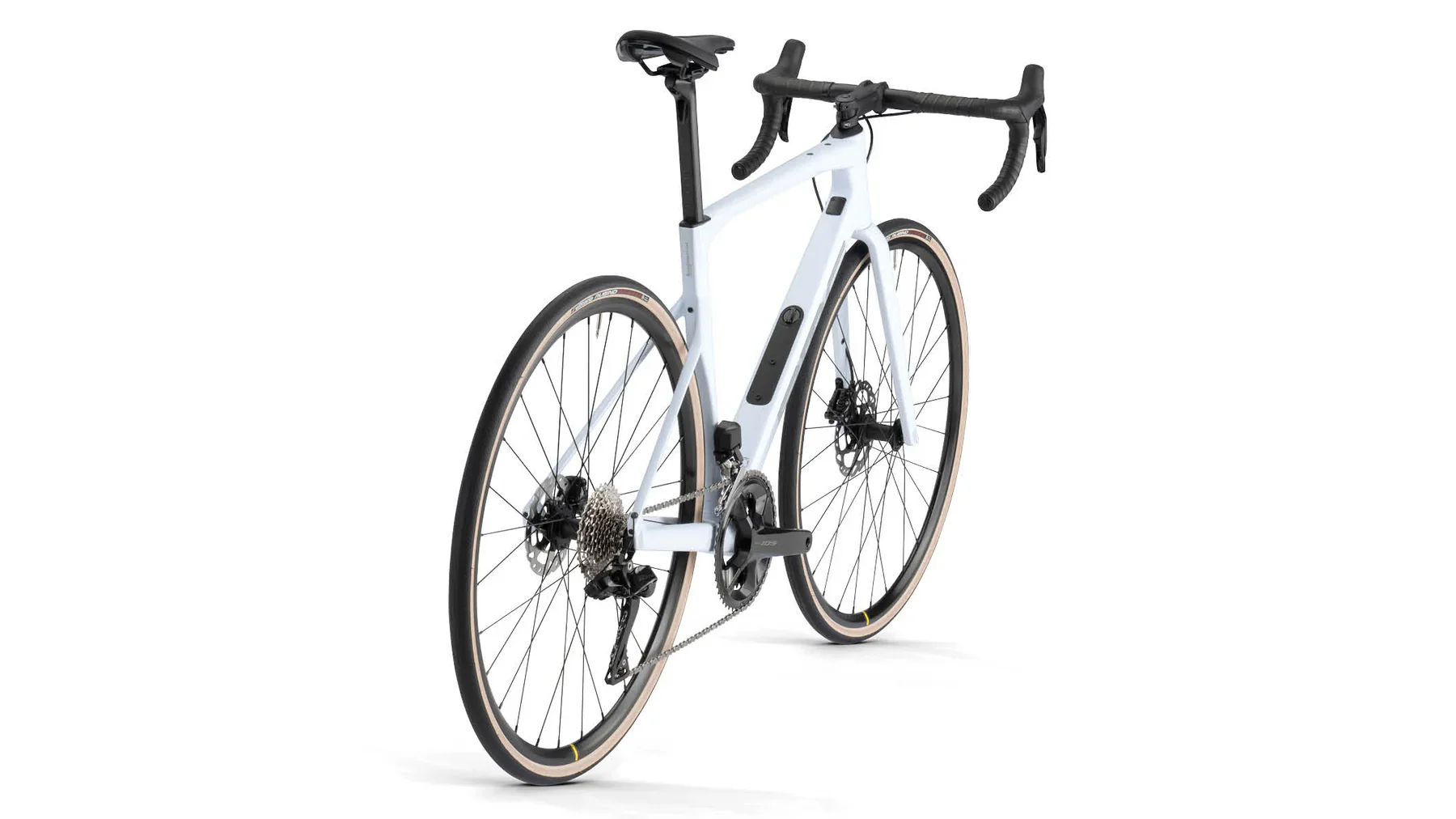

BMC Roadmachine 01 Four

We believe the Roadmachine 01 is your perfect bike. Speed. Comfort. Endurance. Versatility. Capabilities that put a new spin on endurance bikes. All characteristics that are complimented by Stealth Cable Routing, built-in downtube storage and integrated rear light. Finally, our ICS2 stem and carbon handlebars complement a build that includes Shimano’s Ultegra Di2 groupset and CRD-321 Carbon Wheelset with 30 mm tires.

Frameset

Frame:
Roadmachine 01 Premium Carbon with Tuned Compliance Concept Endurance | ICS Technology Stealth Cable Routing | Integrated Downtube Storage | Stealth Dropout Design | 12 x 142mm Thru-Axle

Cockpit

Stem:
BMC ICS2 | Integrated Cockpit System Technology

Handlebar:
Easton EC70 SL Carbon or Easton EC90 SLX Carbon

Seat

Seatpost:
Roadmachine 01 Premium Carbon D-Shaped Seatpost | 15mm Offset | D-Fender Compatible

Saddle:
Fizik Argo Tempo R5 | 150mm

Drivetrain

Crankset:
SHIMANO Ultegra (FC-R8100)

Chainrings:
50-34T

Cassette:
SHIMANO Ultegra (CS-R8101)

Cassette Size:
11-34T

Chain:
SHIMANO CN-M8100

Front Derailleur:
SHIMANO Ultegra Di2 (FD-R8150)

Rear Derailleur:
SHIMANO Ultegra Di2 (RD-R8150)

Shifters:
SHIMANO Ultegra Di2 (ST-R8170)

Gears:
2 x 12

Bottom Bracket:
PF86 Bottom Bracket

Brakes

Brake Levers / Calipers:
SHIMANO Ultegra (BR-R8170)

Rotors:
SHIMANO RT-MT800

Rotor Size (F/R):
160 / 140mm

Wheels

Rims:
CRD-321 Carbon | Tubeless Ready | 35mm

Hubs (F/R):
CRD-321

Tires:
Vittoria Corsa N.EXT G2.0 | TLR (Tubeless Ready) | 30mm

Tubeless Information:
Tubeless Ready Rims | Tubetype Tires

Accessories

Integrated Rear Light 20 | Roadmachine Bottle Cages | Storage Pouch

Size	47	51	54	56	58	61
Rider Height	<160	158-174	172-180	178-186	184-192	>190
Reach	370	379	383	388	393	398
Stack	525	550	570	595	620	645
Bar Drop	127	127	127	127	127	127
Bar Reach	67	67	67	67	67	67
Bar Width	400	420	420	420	420	420
BB Drop	75	75	75	75	75	75
Crank Length	170	170	172.5	172.5	175	175
Fork Length	379	379	379	379	379	379
Fork Rake	50	50	45	45	45	45
Front Center	579	596	594	607	620	633
Head Tube	112	138	154	181	207	233
Head Tube Angle	71.4	71.4	72.2	72.2	72.2	72.2
Rear Center	415	415	415	415	415	415
Seat Angle	74.2	74.2	74.2	74.2	74.2	74.2
Seat Tube	414	461	488	508	529	550
Seatpost Length	330	380	380	380	380	430
Seatpost Offset	15	15	15	15	15	15
Standover Height	726	762	786	807	828	849
Stem Angle	-12.5	-12.5	-12.5	-12.5	-12.5	-12.5
Stem Length	90	100	100	110	110	120
Top Tube	520	537	546	559	571	581
Trail	63	63	63	63	63	63
Wheelbase	982	1000	997	1010	1023	1036
